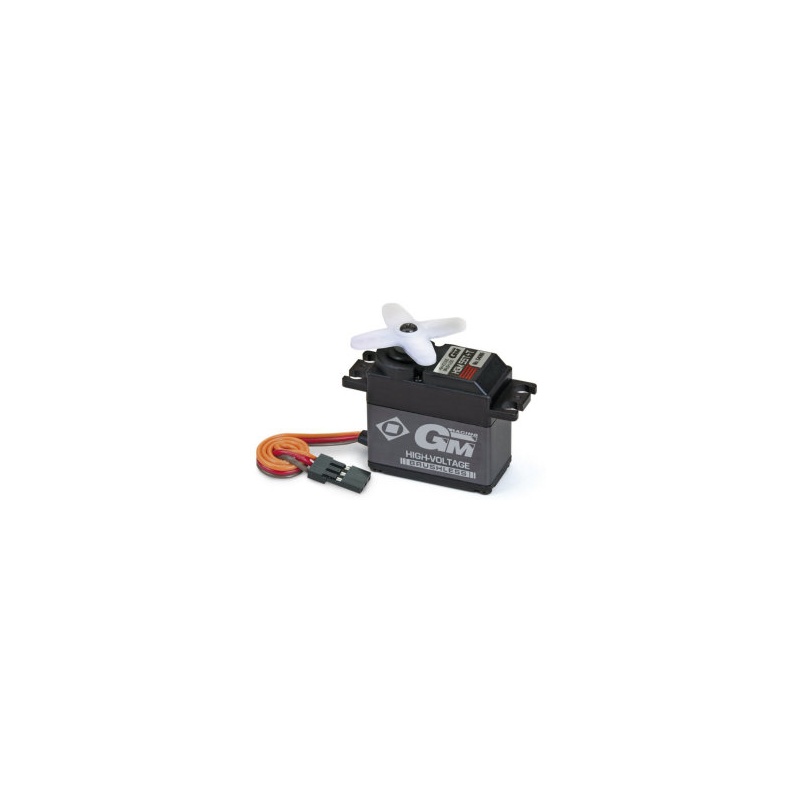

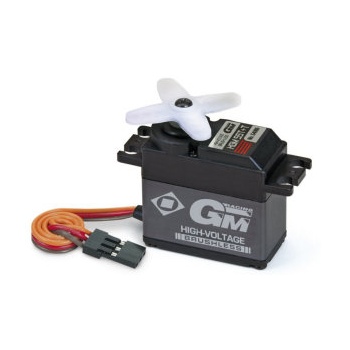

Servo brushless Graupner HGM SST + T BB MG 20 mm

Tootekood: GR-S4086
Kaubamärk: Graupner
Ühik: tk
Laoseis: 1

Rocca: 1
Ülemiste: 0
Hind:
84,90 €
Kogus: - +


The speed version for internal combustion flat-track models scale 1:8 & 1:10

The HGM SST+T servo is a SUMD-V2 telemetry servo for the transmission of data such as current consumption in bar form and max. Current consumption in A, position (angle in degrees) and wear indication.

The servo can be adjusted through the telemetry menu similar to the servo software, e.g.Dead band, trimming, direction of rotation, acceleration, etc.

The servo can either be used with SUMD-V2 or the normal transmission modes.

The remote controls X-8N and X-8E support the SUMD-V2 system.

(Compatible with Sanwa High and Super Response)

Speed version, particularly well suited for internal combustion flat-track models on a scale of 1:8 or 1:10.

Product features

SUMD-V2 telemetry servo
Parameters can be set by telemetry
High-voltage, operating voltage up to 8.4 V!
Direct operation with 2-cell LiPo batteries
Operating voltage range 4.8 ... 8.4 V
Brushless
Housing central part made of aluminium
2 x ball bearing
metal gear

Info
GM High-Voltage Brushless Servo (HGM) The new HGM servos (GM high-voltage brushless servos) have been developed specifically for the particular requirements in the car area. They combine the performance of brushless technology with all the advantages of high-voltage servos. In addition to the unparalleled acceleration, greater efficiency, and no wear of carbon brushes, these servos can be supplied with an operating voltage of up to 8.4V. Direct connection of 2-cell LiPo battery packs is now possible with no problem; in addition, these servos also provide top performance at an operating voltage of just 6V. Precision in manufacturing and assembly as well as the very best component quality make uncompromising power and speed available to the servo mechanism. A new dimension in the combination of power, speed,acceleration, precision, and resolution.

Specification
Width [mm]: 19,5 mm
Holding torque 6.0V, approx. [Ncm]: 200 Ncm
Height [mm]: 39,2 mm
Transit speed at 6.0 V, approx. [Sek / 40°] : 0,06 Sek/40°
Weight [g]: 58 g
Angular travel incl. trim, approx. : 2 x 45 °
Transit speed at 7.4 V, approx. [Sek / 40°]: 0,05 Sek/40°
No-load current drain, approx. [mA] : 35 mA
Torque at 6.0 V, approx. [Ncm]: 90 Ncm
Holding torque 7.4V, approx. [Ncm]: 220 Ncm
Overall length [mm]: 40 mm
Current consumption at 6.0V approx. [mA]: 2430 mA
Dimensions [LxWxH in mm]: 40 x 19,5 x 40 mm
Torque at 7.4 V, approx. [Ncm] : 105 Ncm
Bearings: 2 Ball-Bearing
Replacement gearbox: 94051.2
Current consumption of 7.4 V approx. [mA]: 2980 mA
Gear unit: Metal
Operating voltage neutral [V] : 4,8 ... 8,4 V
Neutral impulse: 1,5 ms
Max. operating frequency [ms / Hz]: 2,5 / 400 ms / Hz
Brand: GM
Field of application: Car
Brushless: Yes
High-Voltage: Yes
Servo type: digital
Servo series: HGM Servo
